12. VirtIO Crypto Library

VirtIO-crypto library is the virtualization solution used in CN10K for crypto accelerator.

12.1. Features

Currently, VirtIO emulation device supports VirtIO 1.3 specification, where it offers below features.

12.1.1. VirtIO Common Feature Bits:

  • VIRTIO_F_RING_PACKED

  • VIRTIO_F_VERSION_1

  • VIRTIO_F_IN_ORDER

12.1.2. VirtIO-crypto Feature Bits:

  • VIRTIO_CRYPTO_F_REVISION_1

Here are some notes about virtio-crypto features:

  • modern devices are supported, legacy devices are not supported.

  • only packed virtqueues(virtio_f_ring_packed) are supported.

12.1.3. VirtIO-crypto Services:

  • VIRTIO_CRYPTO_SERVICE_AKCIPHER

At the moment, only AKCIPHER service is supported. The AKCIPHER service is used for asymmetric crypto operations. Following algorithms are supported:

  • VIRTIO_CRYPTO_AKCIPHER_RSA

12.2. VirtIO-crypto device identification

The virtio crypto device is represented by a virtio device identifier. The virtio device identifier is used to send and receive the crypto operations to and from the virtio crypto device. Each virtio crypto device is designated by a unique device index starts from 0, in all functions. Currently, this library supports maximum of 128 virtio crypto devices, one to one mapped to a PEM VF. VirtIO devid[11:0] indicates VF number while devid[15:12] indicates PF number within that VF. A virtio device is always connected to Host VF. Host PF doesn’t have a virtio device representation in the library.

12.3. Device initialization

The initialization of each virtio crypto device includes the following operations:

  • Initialize base virtio device using virtio_dev_init() API, which populates the virtio capabilities to be available to host.

  • Populates default values to struct virtio_crypto_config.

The dao_virtio_cryptodev_init API is used to initialize a VirtIO crypto device.

int dao_virtio_cryptodev_init(uint16_t devid, struct dao_virtio_cryptodev_conf *conf);

The devid parameter is the virtio device identifier, which is used to identify the virtio crypto device.

The dao_virtio_cryptodev_conf structure is used to pass the configuration parameters shown below.

struct dao_virtio_cryptodev_conf {
	/** PEM device ID */
	uint16_t pem_devid;
	/** Vchan to use for this virtio dev */
	uint16_t dma_vchan;
	/** Default dequeue mempool */
	struct rte_mempool *pool;
	/** ID of crypto device associated with this virtio device */
	uint16_t cdev_id;
};

The dao_virtio_cryptodev_fini API is used to finalize a VirtIO crypto device. It is expected to be called when the application is exiting or when the device is no longer needed. It cleans up the resources allocated for the device and unregisters the device from the DPDK crypto framework.

int dao_virtio_cryptodev_fini(uint16_t devid);

The application vc_offload is a sample application that shows how to use virtio crypto library.

Sample code to set dao_virtio_cryptodev_conf parameters:

memset(&cryptodev_conf, 0, sizeof(cryptodev_conf));
cryptodev_conf.pem_devid = pem_devid;
cryptodev_conf.dma_vchan = dma_vchan;
cryptodev_conf.pool = qp_mempool;
cryptodev_conf.cdev_id = cryptodev_id;

/* Initialize virtio crypto device */
rc = dao_virtio_cryptodev_init(virtio_devid, &cryptodev_conf);
if (rc)
        rte_exit(EXIT_FAILURE, "Failed to init virtio device\n");

12.4. User callback APIs

The application is expected to register callbacks to take the appropriate actions for each control command. VirtIO crypto library triggers the corresponding callback function when it receives the control command.

The dao_virtio_cryptodev_cb_register API is used to register the user callback APIs.

void dao_virtio_cryptodev_cb_register(struct dao_virtio_cryptodev_cbs);

The dao_virtio_cryptodev_cbs structure is used to pass various callback functions in the above API. The following callbacks can be registered currently,

struct dao_virtio_cryptodev_cbs {
	/** Device status callback */
	dao_virtio_cryptodev_status_cb_t status_cb;
	/** Crypto symmetric session create callback */
	dao_virtio_cryptodev_sym_sess_create_cb_t sym_sess_create_cb;
	/** Crypto session destroy callback */
	dao_virtio_cryptodev_session_destroy_cb_t sym_sess_destroy_cb;
	/** Crypto asymmetric session create callback */
	dao_virtio_cryptodev_asym_sess_create_cb_t asym_sess_create_cb;
	/** Crypto session destroy callback */
	dao_virtio_cryptodev_session_destroy_cb_t asym_sess_destroy_cb;
};

Following are the callback functions that can be registered:

  • status_cb: This callback is invoked when the virtio crypto device status changes. At present, it is invoked when the virtio crypto device driver is initialized or if the device is reset.

  • sym_sess_create_cb: This callback is invoked when a request for symmetric session

    creation is received. The application can use this callback to create a symmetric session and return the session ID.

  • sym_sess_destroy_cb: This callback is invoked when a symmetric session is to be destroyed. The application can use this callback to free the symmetric session resources.

  • asym_sess_create_cb: This callback is invoked when a request for asymmetric session

    creation is received. The application can use this callback to create an asymmetric session and return the session ID.

  • asym_sess_destroy_cb: This callback is invoked when an asymmetric session is to be destroyed. The application can use this callback to free the asymmetric session resources.

To unregister the user callback functions, the application can call the dao_virtio_cryptodev_cb_unregister() API.

void dao_virtio_cryptodev_cb_unregister(void);

12.5. VirtIO Crypto Queue Overview

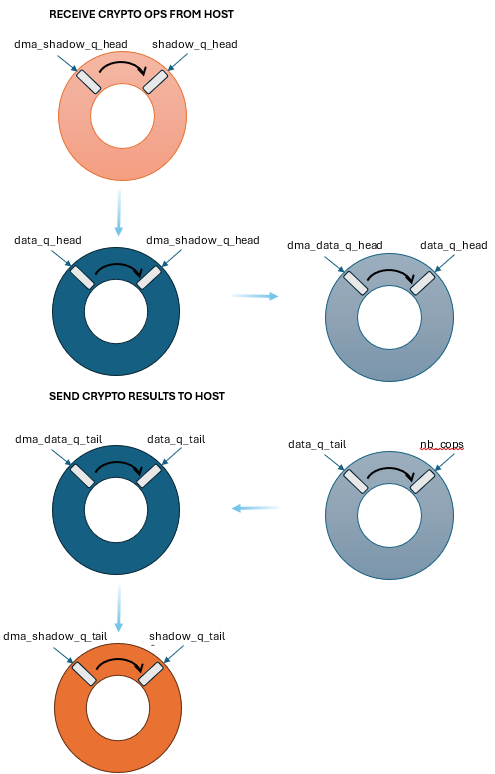

virtio crypto queue overview

VirtIO crypto device has two types of queues, control and data queues. The control queue is used to send control commands to the virtio crypto device. The data queues are used to send and receive crypto operations. The control queue is a single queue, while the data queues are multiple queues.

Control queue is processed by the service core which initializes the virtio crypto device and register the user callback APIs. The data queues are processed by the worker cores which send and receive the crypto operations to and from the virtio crypto device. Internally, the virtio crypto device uses state variables to manage the descriptors, as in above figure.

The state variables in orange are used to move the descriptors between the host and the virtio crypto device and these are updated only by the service core. The state variables in blue are used to convert descriptors to crypto ops for DPDK crypto device to later process and these are managed by the worker cores.

Once the descriptors are ready for processing in dma_data_q_head, the worker cores convert them to crypto operations and update the data_q_head state variable. When the crypto operations are completed, the worker cores update the data_q_tail state variable to indicate that the crypto operations are ready for DMA transfer. Similarly, when the crypto operations that were managed in data_q_tail are completed, the worker cores issue DMA to copy the descriptors to the host memory and update the dma_data_q_tail state variable.

Service core takes care of copying the descriptors back and forth between the host and the virtio crypto device, as managed in shadow_q_head and shadow_q_tail state variables.

12.6. Queue count

Application is expected to get the active data virt queues count using dao_virtio_cryptodev_data_queue_cnt_get and equally distribute the crypto queues among all the subscribed lcores.

virt_q_count = dao_virtio_cryptodev_data_queue_cnt_get(virtio_devid);

12.7. VirtIO Descriptors Management API

The virtio crypto library provides an API for managing virtio descriptors, it does following operations:

  • Determine the number of descriptors available by polling on virt queue notification address.

  • Issue DMA using DPDK dmadev library to copy the descriptors to shadow queues.

  • Pre-allocate mbufs for actual packet data. Worker cores checks the shadow queue for the available descriptors and issue DMA for actual packet data using these mbufs.

  • Fetch all DMA completions.

  • Mark used virtio descriptors as used in Host descriptor memory.

The dao_virtio_crypto_desc_manage() API is used to manage the virtio descriptors. Application is expected to call this from a service core as frequently as possible to shadow descriptors between Host and Octeon memory.

int dao_virtio_crypto_desc_manage(uint16_t dev_id, uint16_t qp_count);

The devid parameter is the virtio device identifier and qp_count parameter specifies the active data virt queue count.

12.8. Host receive API

The host receive API enqueues the crypto ops from the host. This enqueuing includes following operations:

  • Prepares the descriptors for DMA.

  • When DMA is completed, convert the descriptors to crypto ops.

uint16_t dao_virtio_crypto_host_rx(uint16_t devid, uint16_t qid,
                                   struct rte_crypto_op **cops, uint16_t nb_cops);

The devid parameter is the virtio device identifier and the qid parameter is the virt queue identifier.

The nb_cops parameter is the number of operations to process which are supplied in the cops array of structure rte_crypto_op.

The receive function returns the number of operations it actually received for processing. This API is expected to be executed by worker cores.

12.9. Host transmit API

The host transmit API dequeues the processed crypto ops and transmit them to the host. This dequeueing includes the following operations:

  • Issue DMA for completed crypto ops.

  • Fetch DMA status and update the shadow queue tail for service core to process the descriptors.

uint16_t dao_virtio_crypto_host_tx(uint16_t devid, uint16_t qid,
                                   struct rte_crypto_op **cops, uint16_t nb_cops);

It uses the same format as the receive API but the nb_cops and cops parameters are now used to specify the max processed operations the user wishes to retrieve and the location in which to store them.

The API call returns the actual number of processed operations returned, this can never be larger than nb_cops.
